Compressor BITZER 4GE-23Y

  • Compressor BITZER
  • Compressor BITZER 4GE-23Y
Producer: BITZER
Product code: 4GE-23Y
Series:Sprężarki Bitzer
7 197,96 €
/ pc.
5 852,00 €
net / pc.
Add to wish list
Compressor BITZER 4GE-23Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4GE-23Y 30 ºC Q   83800 W  69900 W  57800 W 47350 W 38350 W 30650 W 24100 W 18540 W 13880 W
P   18,72 17,88 16,84   15,63 14,30  12,88 11,41  9,93 8,48
40 ºC Q   71800 W  59800 W  49350 W  40300 W  32550 W  25900 W  20200 W  15420 W  11430 W
P   22,15  20,71  19,13  17,44  15,68  13,88  12,09  10,34  8,68
50ºC Q   59300 W  49300 W  40600 W  33050 W  26550 W  21000 W  16290 W  12320 W  9010 W
P   25,11  23,12  21,03  18,88  16,72  14,58  12,50  10,52  8,68
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
84,6 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 1/8"
Oil charge:
4,5 dm3
Weight:

net

192 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

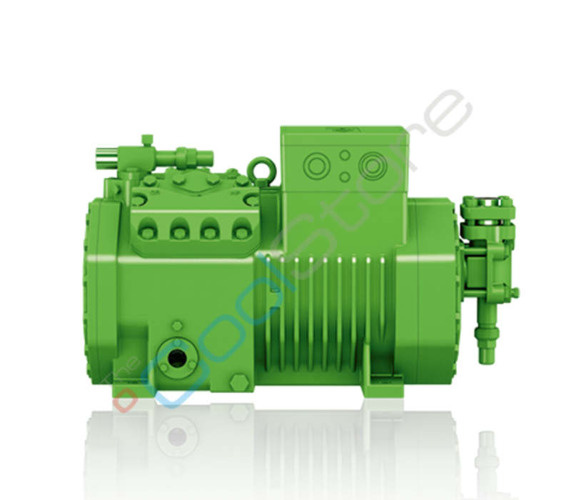

Pictures:
illustrative
