Compressor BITZER 4FE-28Y

  • Compressor BITZER
  • Compressor BITZER 4FE-28Y
Producer: BITZER
Product code: SPBI_00036
Series:Sprężarki Bitzer
7 464,87 €
/ pc.
6 069,00 €
net / pc.
Add to wish list
Compressor BITZER 4FE-28Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4FE-28Y 30 ºC Q   99400 W  83000 W  68800 W 56400 W 45800 W 36700 W 28950 W 22350 W 16830 W
P   22,31 21,42 20,27   18,88 17,32  15,63 13,86  12,07 10,28
40 ºC Q   85000 W  71000 W  58800 W  48200 W  39000 W  31100 W  24350 W  18590 W  13720 W
P   26,16  24,66  22,93  21,01  18,96  16,82  14,65  12,49  10,38
50ºC Q   70100 W  58600 W  48500 W  39650 W  32000 W  25350 W  19630 W  14710 W  10520 W
P   29,47  27,37  25,09  22,66  20,14  17,57  15,02  12,51  10,11
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
101,8 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 1/8"
Oil charge:
4,5 dm3
Weight:

net

207 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

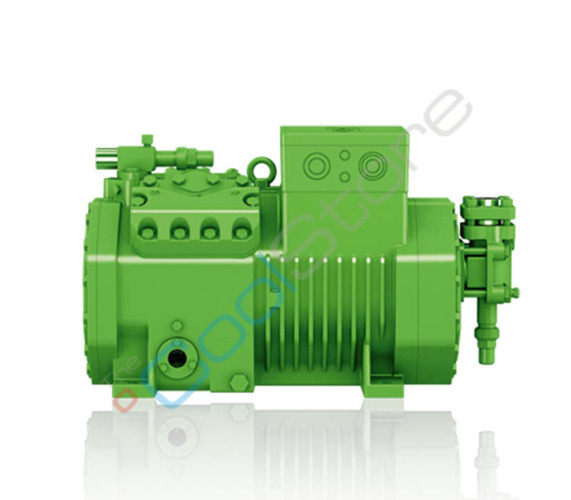

Pictures:
illustrative
