Compressor BITZER 4FE-35Y

  • Compressor BITZER
  • Compressor BITZER 4FE-35Y
Producer: BITZER
Product code: SPBI_00037
Series:Sprężarki Bitzer
7 773,60 €
/ pc.
6 320,00 €
net / pc.
Add to wish list
Compressor BITZER 4FE-35Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
4FE-35Y 30 ºC Q 117900 W  99000 W  82600 W  68300 W 56000 W 45400 W 36300 W 28550 W 22000 W 16460 W
P  22,43 21,87 21,00 19,85   18,49 16,95  15,28 13,53  11,76 10,00
40 ºC Q  100500 W 84500 W  70500 W  58300 W  47700 W  38550 W  30650 W  23900 W  18160 W  13310 W
P 26,81  25,61  24,13  22,42  20,53  18,51  16,40  14,25  12,12  10,04
50ºC Q  82600 W 69500 W  58000 W  47900 W  39100 W  31500 W  24850 W  19140 W  14240 W  10070 W
P  30,62 28,79  26,73  24,48  22,09  19,60  17,07  14,55  12,08  9,70
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
101,8 m3/h
Number of cylinders:
2
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 1/8"
Oil charge:
4,5 dm3
Weight:

net

207 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes

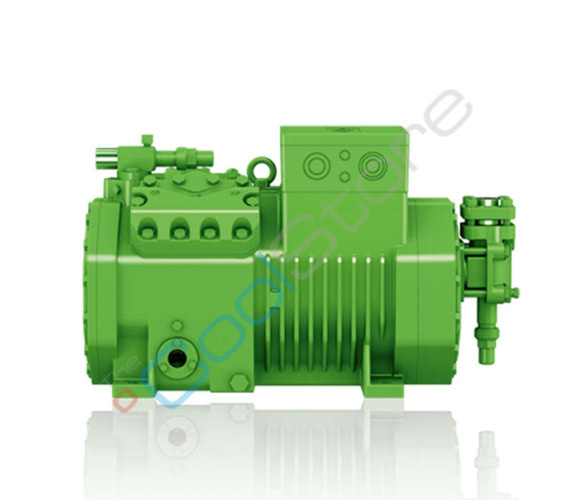

Pictures:
illustrative
