Compressor BITZER 6HE-35Y

  • Compressor BITZER
  • Compressor BITZER 6HE-35Y
Producer: BITZER
Product code: SPBI_00039
Series:Sprężarki Bitzer
9 345,54 €
/ pc.
7 598,00 €
net / pc.
Add to wish list

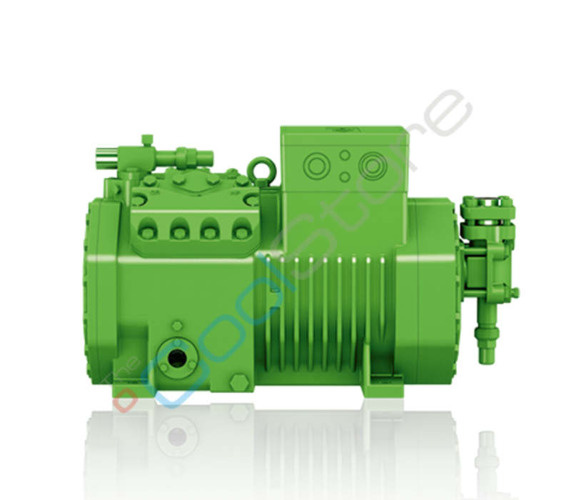

Compressor BITZER  6HE-35Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
6HE-35Y 30 ºC Q 126200 W  105700 W  88000 W  72500 W 59200 W 47750 W 37900 W 29550 W 22500 W 16560 W
P  22,85 22,36 21,53 20,42   19,06 17,52  15,84 14,06  12,25 10,44
40 ºC Q  108000 W 90300 W  74900 W  61500 W  50000 W  40050 W  31500 W  24250 W  18140 W  13030 W
P 27,31  26,15  24,71  23,02  21,14  19,12  16,99  14,81  12,63  10,49
50ºC Q  89300 W 74500 W  61600 W  50400 W  40650 W  32250 W  25100 W  18970 W  13840 W  9570 W
P 31,19  29,42  27,39  25,16  22,78  20,28  17,72  15,14  12,59  10,11
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
110,5 m3/h
Number of cylinders:
6
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 3/8"
Oil charge:
4,75 dm3
Weight:

net

235 kg
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
