Compressor BITZER 6FE-44Y

  • Compressor BITZER
  • Compressor BITZER 6FE-44Y
Producer: BITZER
Product code: SPBI_00042
Series:Sprężarki Bitzer
11 324,61 €
/ pc.
9 207,00 €
net / pc.
Add to wish list
Compressor BITZER  6FE-44Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
6FE-44Y 30 ºC Q   148100  W  123600 W  102400 W 84100 W 68300 W 54700 W 43100 W 33300 W 25050 W
P   33,45 32,18 30,52   28,52 26,27  23,83 21,26  18,65 16,05
40 ºC Q   126600 W  105700 W  87500 W  71800 W  58100 W  46350 W  36250 W  27700 W  20450 W
P   38,97  36,82  34,34  31,59  28,63  25,55  22,40  19,26  16,19
50ºC Q   104400 W  87200 W  72200 W  59100 W  47650 W  37750 W  29250 W  21900 W  15660 W
P   43,70  40,71  37,44  33,95  30,33  26,63  22,93  19,30  15,80
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
151,6 m3/h
Number of cylinders:
6
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 5/8"
Oil charge:
4,75 dm3
Weight:

net

241
Crankcase heater:
✓
Factory flooded with oil:
Yes

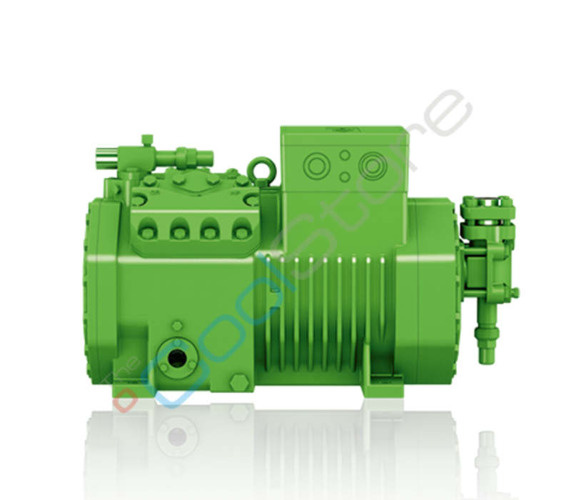

Pictures:
illustrative
