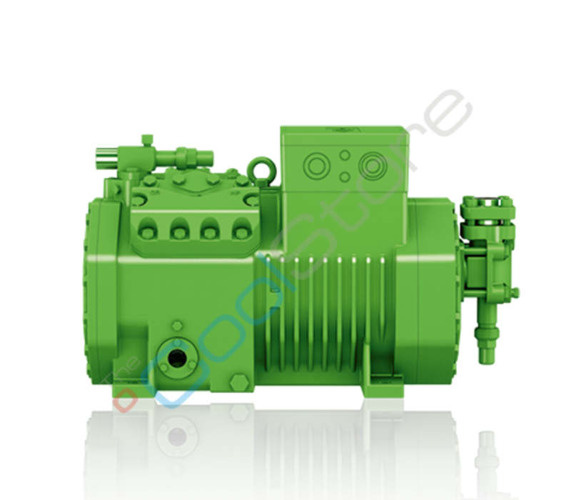

Compressor BITZER 6FE-50Y

  • Compressor BITZER
  • Compressor BITZER 6FE-50Y
Producer: BITZER
Product code: SPBI_00043
Series:Sprężarki Bitzer
11 630,88 €
/ pc.
9 456,00 €
net / pc.
Add to wish list
Compressor BITZER  6FE-50Y

EFFICIENCY
Model

Cond.

temp

Cooling capacity
(Q)[kW]

Evaporating temperature R-404a/ R-507
Power consumption
(P) [kW]		 +5ºC 0ºC -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
6FE-50Y 30 ºC Q 174500 W  146400  W  122000 W  100800 W 82500 W 66700 W 53200 W 41650 W 31900 W 23700 W
P  33,41 32,59 31,30 29,63   27,63 25,38  22,93 20,37  17,74 15,14
40 ºC Q  148500 W 124600 W  103800 W  85700 W  69900 W  56300 W  44600 W  34600 W  26100 W  18880 W
P 39,56  37,80  35,65  33,16  30,41  27,46  24,38  21,23  18,08  15,00
50ºC Q 121700 W  102200 W  85100 W  70100 W  57100 W  45700 W  35850 W  27400 W  20150 W  13970 W
P  44,80 42,15  39,16  35,90  32,43  28,82  25,13  21,42  17,77  14,24
        - Additional cooling or limiting suction gas temperature.





Tech specs:
Displacement at 1450 min-1:
151,6 m3/h
Number of cylinders:
6
Power supply:
380 V / 50 Hz
Type of refrigerant:
R-404A
,
R-134a
,
R-407A
,
R-407F
Gaz connection:
Suction line 2 1/8"
,
Linia tłocząca 1 5/8"
Oil charge:
4,75 dm3
Weight:

net

241
Crankcase heater:
✓
Factory flooded with oil:
Yes
Pictures:
illustrative
