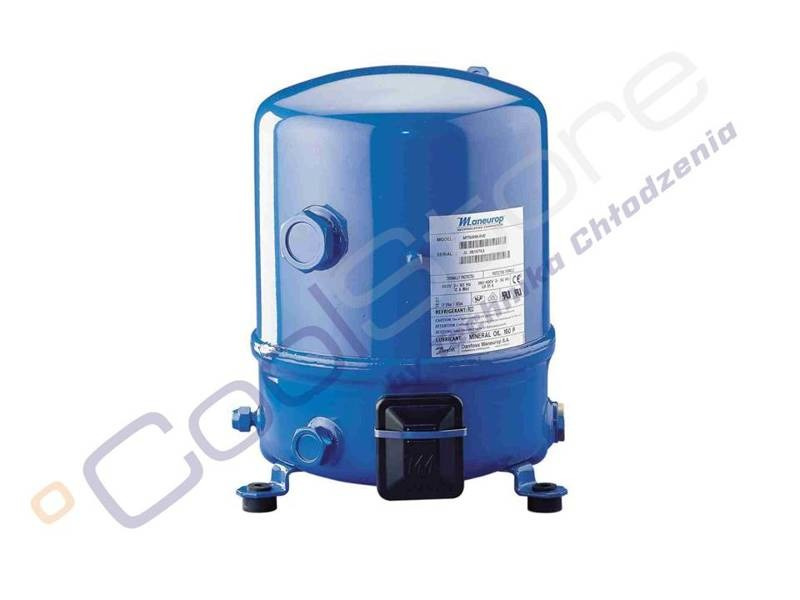

Danfoss Maneurop Compressor MTZ144

  • Hermetic reciprocating compressor.
  • Danfoss Maneurop Compressor MTZ144
Producer: DANFOSS
Product code: SPMA_047
Series:Sprężarki niebieskie Danfoss Maneurop
4 899,09 €
/ pc.
3 983,00 €
net / pc.
Add to wish list
Danfoss Maneurop Compressor  MTZ144

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage Connection

Lubricant (Charge/Type)

 Weight
MTZ144 241.9 cm3

R404A - R507A -
R134a - R407C

 400V / 50Hz &
460V / 60 Hz		 Rotalock

POE - 160PZ / 4l

 67 kg

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R-404A

Condensing Temp.

 -30ºC -25ºC -20ºC -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC
MTZ144 55 ºC - 5710 W 7945 W 10654 W 13924 W 17838 W 22483 W 27944 W 34306 W
45 ºC  5704 W 8060 W 10920 W 14370 W 18494 W 23380 W 29110 W 35773 W 43451 W











Tech specs:
Part number:
MTZ144HV4AVE
,
MTZ144-4VI
,
MTZ144-VM
Wydajność wolumetryczna:
42,1 m3/h (2900 obr/min)
Displacement:
241,87 cm3
Refrigerant:
R404a / R507A / R134a / R407C / R407A / R407F
Oil Type:
POE 160PZ/ 3,9l
Factory flooded with oil:
Yes
Weight:

net

67 kg
Pictures:
illustrative
