SCALE REFCO REFSCALE [REFMESH]

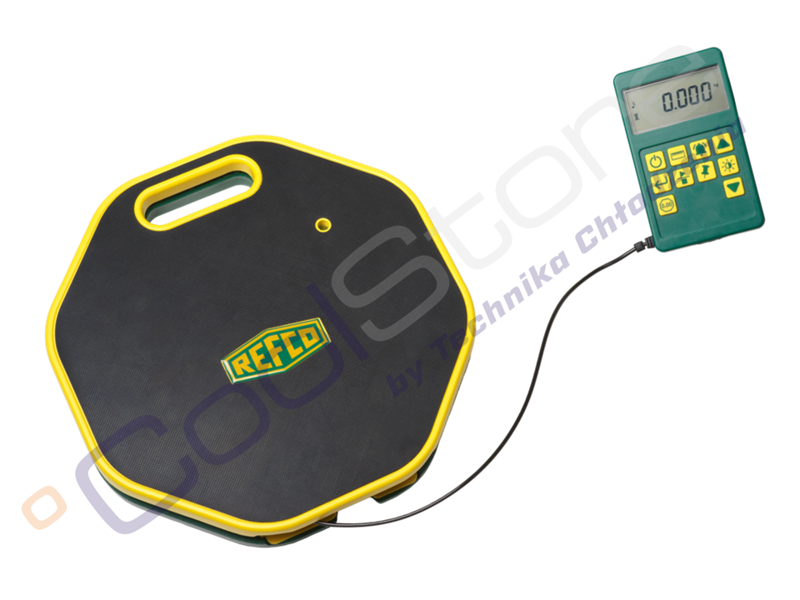

The electronic charging scale REFSCALE can easily be connected to the REFMATE and/or REFMESH. It consists of two solid aluminum plates on which large refrigerant cylinders can be safely placed thanks to the octagonal shape. The highly sensitive measuring cell indicates the exact weight even with asymmetrically positioned cylinders. Set the required function via the REFMESHTM App. In addition, an adapter (10612-REF) for small refrigerant cans can be mounted on the thread, which makes handling easier.
Weight/capacity up to 110 kg
Connects wireless with REFMATETM and/or REFMESHTM
High accuracy and automatic resolution
Programmable alarm
Can be calibrated in the field with reference weights
Indicates refrigerant tank capacity
Measures weight in kg, lb and oz
Flexible power supply with battery or via USB
| Batteries: | 4 x AAA |
| Time working: | około 30 godzin |
| Resolution: | 2 g |
| Units: | kg, lbs, oz |
| Range: | 0 - 110 kg |
| Accuracy: | +/- 0,05% |
| Meets standards: | EN 61326 ,
EN 62479 ,
EN 301 489-1 ,
FCC ,
CE |
| Material: | Aluminium |
| Length hose: | 150 cm |
| Package: | Tekstylna torba |
| Ambient temperature: | -10 – 50°C |
| Pictures: | illustrative |
