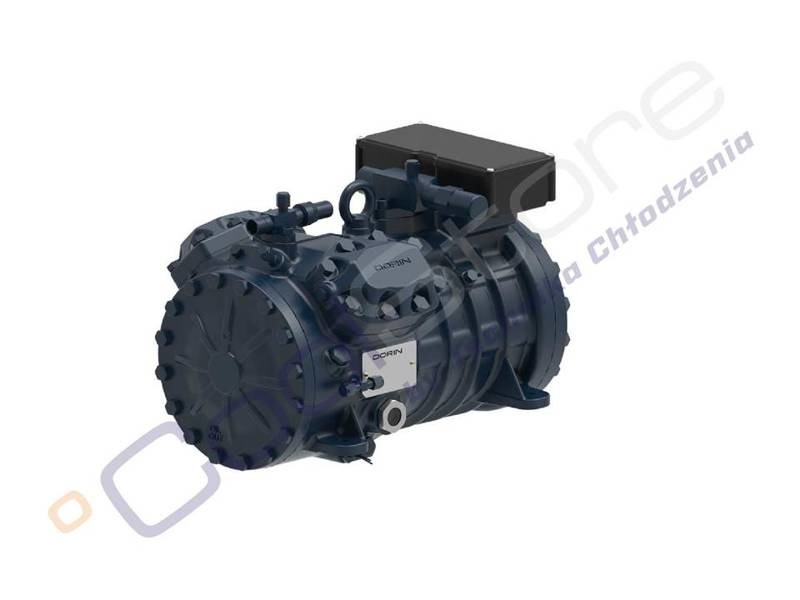

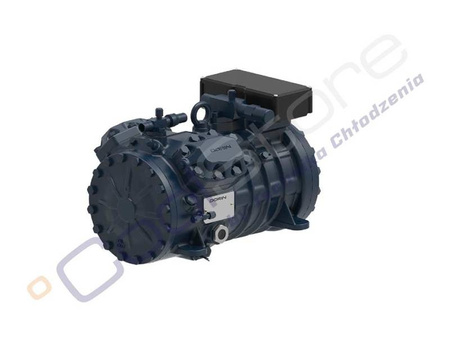

Compressor DORIN H 80 CC

Name: Compressor DORIN H 80 CC
Brand: Dorin
Price: 1430.49 EUR
Availability: InStock

Producer: Dorin

Product code: SPDO_502

Size:

uniwersalny

Our price:

1 430,49 €

/ pc.

1 163,00 €

net / pc.

Quantity:

Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

COMPRESSOR DORIN H 80 CC

TECHNICAL DATA

Model

Refrigerant

Tension

Operating range

Oil type / quantity

Weight

Max. height
compressors

H 80 CC

R-449A/R-448A

R-134a

R-404a/R-507

380V / 50Hz

Adequately to the refrigerant.

Tables below

POE 32 /1000 ml

40 kg

286 mm

PERFORMANCE


Model	Refrigerant evaporation temperature R-449A/R-448A
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 80 CC	45 ºC	Q [W]	3670	3020	2460	1980	1570	1220	930	690	490	325
H 80 CC	45 ºC	P[kW]	1,2	1,14	1,06	0,97	0,87	0,81	0,67	0,57	0,48	0,41


Model	Refrigerant evaporation temperature R-134A
Model	Temperature condensation		20°C	15°C	10ºC	5ºC	0ºC	-5ºC	-10ºC	-15ºC	-20ºC
H 80 CC	45 ºC	Q [W]	4130	3440	2840	2300	1840	1440	1100	820	585
H 80 CC	45 ºC	P[kW]	0,94	0,90	0,85	0,79	0,73	0,66	0,59	0,52	0,45

Model	Refrigerant evaporation temperature R 404A/R 507
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 80 CC	45 ºC	Q [W]	-	3060	2540	2080	1690	1350	1050	805	-	-
H 80 CC	45 ºC	P[kW]	-	1,25	1,17	1,08	0,98	0,88	0,78	0,68	-	-

Tech specs:

Producer:	Dorin
Series:	H11
Typ:	Semi-hermetic piston compressor
Discharge:	12 mm
Ssuction:	12 mm
Factory flooded with oil:	Yes
Pictures:	illustrative
