Compressor DORIN H 101 CC

Name: Compressor DORIN H 101 CC
Brand: Dorin
Price: 1437.87 EUR
Availability: InStock

Producer: Dorin

Product code: SPDO_504

Size:

uniwersalny

Our price:

1 437,87 €

/ pc.

1 169,00 €

net / pc.

Quantity:

Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

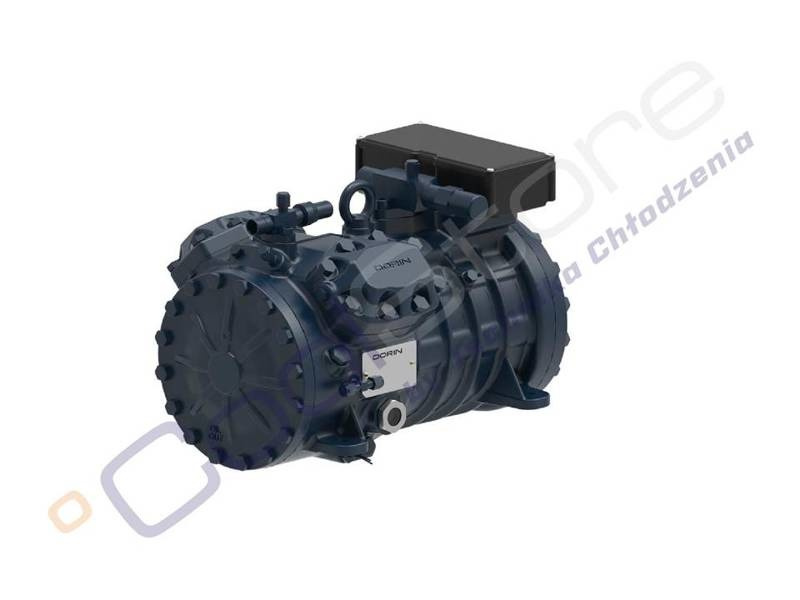

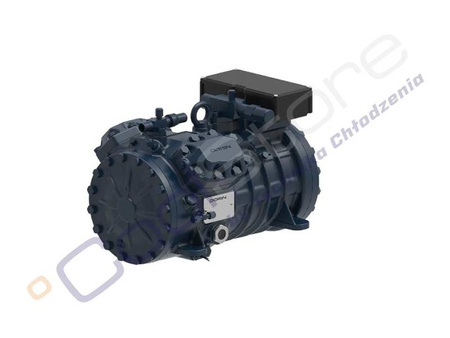

COMPRESSOR DORIN H 101 CC

TECHNICAL DATA

Model

Refrigerant

Tension

Operating range

Oil type / quantity

Weight

Max. height
compressors

H 101 CC

R-449A/R-448A

R-134a

R-404a/R-507

380V / 50Hz

Adequately to the refrigerant.

Tables below

POE 32 /1000 ml

42 kg

286 mm

PERFORMANCE


Model	Refrigerant evaporation temperature R-449A/R-448A
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 101 CC	45 ºC	Q [W]	-	3940	3190	2550	2010	1550	1180	860	605	395
H 101 CC	45 ºC	P[kW]	-	1,45	1,35	1,24	1,11	0,98	0,85	0,72	0,59	0,49


Model	Refrigerant evaporation temperatureR-134A
Model	Temperature condensation		20°C	15°C	10ºC	5ºC	0ºC	-5ºC	-10ºC	-15ºC	-20ºC
H 101 CC	45 ºC	Q [W]	5070	4230	3490	2840	2270	1780	1370	1020	730
H 101 CC	45 ºC	P[kW]	1,12	1,07	1,01	0,94	0,87	0,79	0,7	0,62	0,54

Model	Refrigerant evaporation temperature R 404A/R 507
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 101 CC	45 ºC	Q [W]	-	-	3370	2740	2200	1730	1340	1000	725	490
H 101 CC	45 ºC	P[kW]	-	-	1,51	3,38	1,25	1,11	0,98	0,84	0,72	0,6

Tech specs:

Producer:	Dorin
Series:	H11
Typ:	Semi-hermetic piston compressor
Discharge:	12 mm
Ssuction:	12 mm
Factory flooded with oil:	Yes
Pictures:	illustrative
