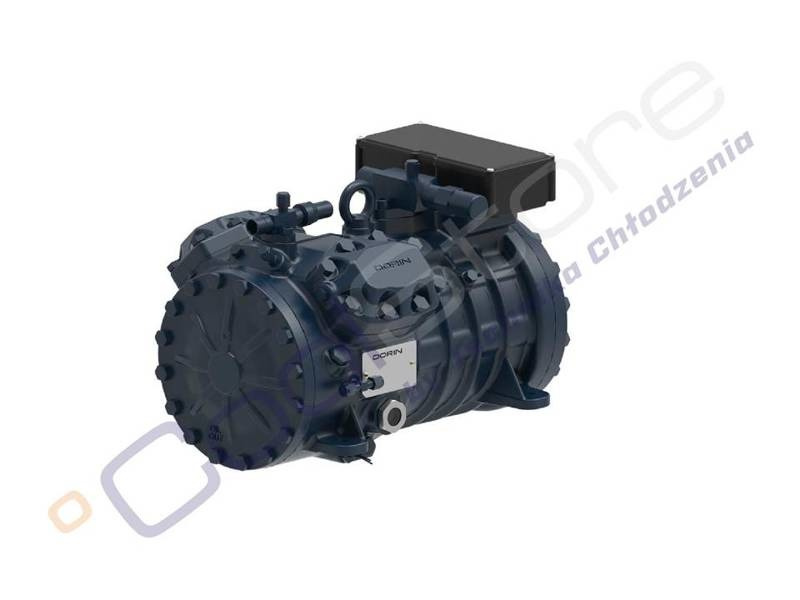

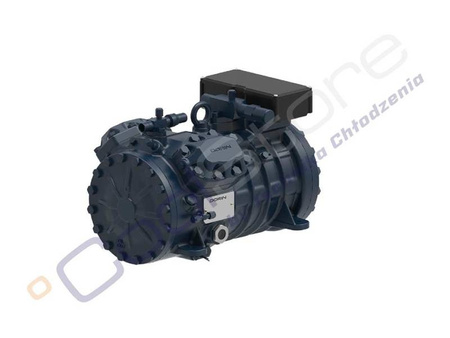

Compressor DORIN H 201 CC

  • Compressor DORIN H 201 CC
Producer: Dorin
Product code: SPDO_510
1 539,96 €
/ pc.
1 252,00 €
net / pc.
Add to wish list
COMPRESSOR DORIN H 201  CC

TECHNICAL DATA

Model

 Refrigerant Tension Operating range

Oil / quantity

 Weight Max. compressor height
H 201  CC

R-449A/R-448A

R-134a

R-404a/R-507

 380V / 50Hz



Adequately to the factor.

Tables below

POE 32 /1000 ml

 46 kg 286 mm

PERFORMANCE



Model

Refrigerant evaporation temperature R-449A/R-448A

Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 201  CC 45 ºC Q [W] 7960 6550 5330 4280 3390 2630 2000 1480 1050 685
P[kW] 2,52 2,39 2,22 2,04 1,83 1,63 1,43 1,25 1,11 1


Model

Refrigerant evaporation temperature R-134A

Temperature

condensation



20°C

15°C

 10ºC 5ºC 0ºC -5ºC -10ºC -15ºC -20ºC
H 201  CC 45 ºC Q [W] 9040 7560 6240 5090 4090 3220 2480 1870 1360
P[kW] 1,83  1,78 1,71 1,61 1,5 1,37 1,23 1,08 0,94




Model

Refrigerant evaporation temperature R 404A/R 507

Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 201  CC 45 ºC Q [W] 7760  6470 5370 4430 3630 2940 2340 1820 1340 890
P[kW] 2,69 2,57 2,42 2,25 2,07 1,88 1,69 1,5 1,32 1,17





Tech specs:
Producer:
Dorin
Series:
H11
Typ:
Semi-hermetic piston compressor
Discharge:
12 mm
Ssuction:
16 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
