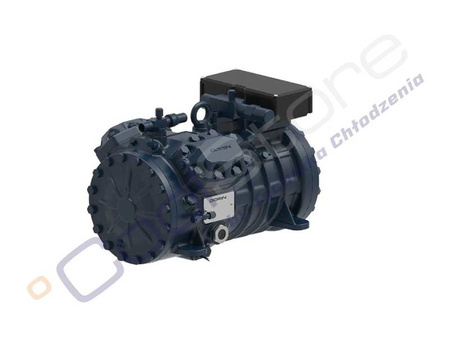

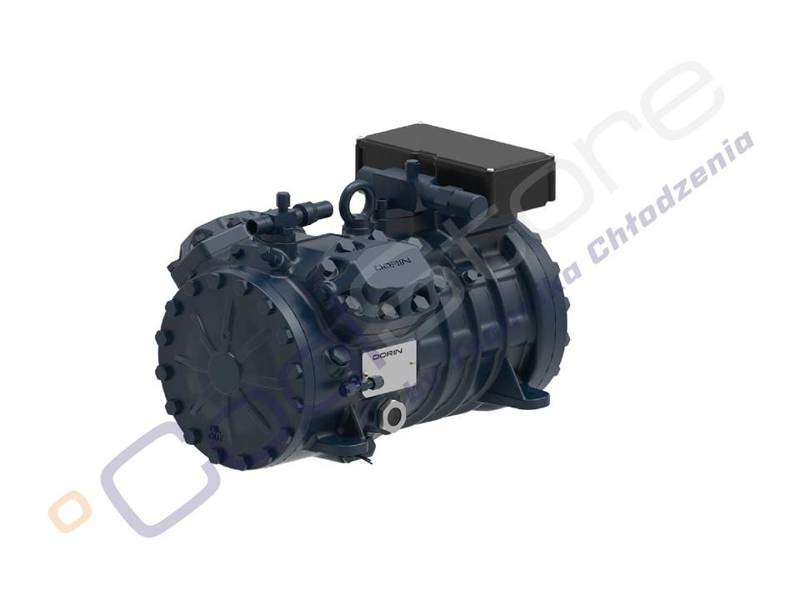

Compressor DORIN H 281 CC

Name: Compressor DORIN H 281 CC
Brand: Dorin
Price: 1305.64 EUR
Availability: OutOfStock

Producer: Dorin

Product code: H1T0351

Size:

uniwersalny

Our price:

1 305,64 €

/ pc.

1 061,50 €

net / pc.

Quantity:

Add to wish list

COMPRESSOR DORIN H 281 CC

TECHNICAL DATA

Model

Refrigerant

Tension

Operating range

Oil / quantity

Weight

Max. compressor height

H 281 CC

R-449A/R-448A

R-134a

R-404a/R-507

380V / 50Hz

Adequately to the factor.

Tables below

POE 32 /1000 ml

48 kg

294 mm

PERFORMANCE

Model	Refrigerant evaporation temperature R-449A/R-448A
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 281 CC	45 ºC	Q [W]	10170	8340	6770	5420	4280	3320	2520	1860	1320	860
H 281 CC	45 ºC	P[kW]	3,25	3,12	2,92	2,68	2,4	2,11	1,82	1,54	1,29	1,08


Model	Refrigerant evaporation temperature R-134A
Model	Temperature condensation		20°C	15°C	10ºC	5ºC	0ºC	-5ºC	-10ºC	-15ºC	-20ºC
H 281 CC	45 ºC	Q [W]	11390	9570	7960	6540	5310	4240	3330	2560	1920
H 281 CC	45 ºC	P[kW]	2,49	2,42	2,32	2,2	2,07	1,91	1,75	1,58	1,4

Model	Refrigerant evaporation temperature R 404A/R 507
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 281 CC	45 ºC	Q [W]	10220	8550	7070	5790	4670	3700	2870	2160	1550	1030
H 281 CC	45 ºC	P[kW]	3,6	3,44	3,23	2,98	2,71	2,41	2,12	1,83	1,56	1,32

Tech specs:

Producer:	Dorin
Series:	H11
Typ:	Semi-hermetic piston compressor
Discharge:	16 mm
Ssuction:	18 mm
Factory flooded with oil:	Yes
Pictures:	illustrative
