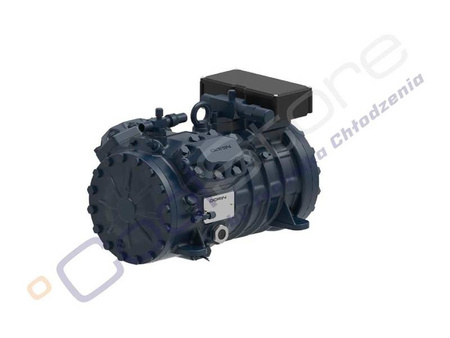

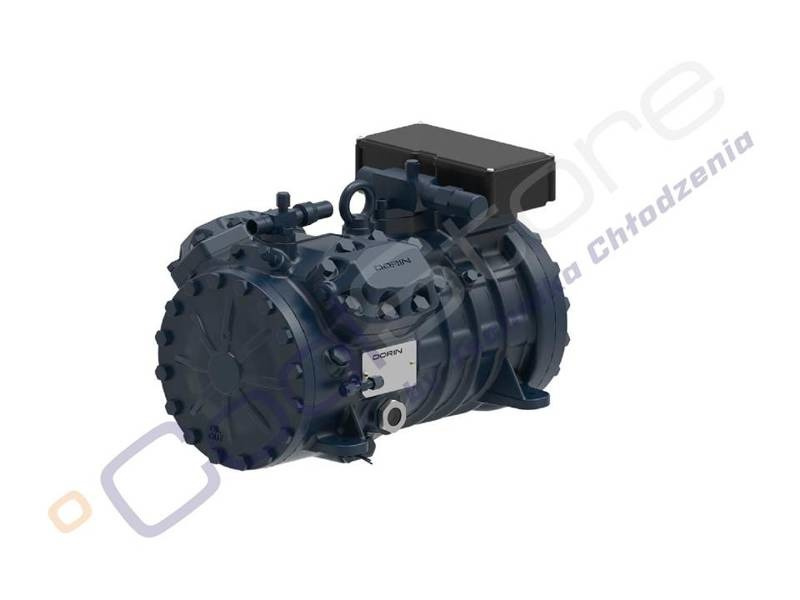

Sprężarka DORIN H 405 CC

  • Sprężarka DORIN H 405 CC
Producer: Dorin
Product code: SPDO_532
2 741,67 €
/ pc.
2 229,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability
COMPRESOR DORIN H 405 CC

TECHNICAL DATA

Model

 Refrigerant Tension Operating range

Oil / quantity

 Weight Max. compressor height
H 405 CC

R-449A/R-448A

R-134a

R-404a/R-507

 380V / 50Hz

 Adequately to the factor.

Tables below

POE 32 /1800 ml

 77 kg 336 mm
PERFORMANCE



Model

Refrigerant evaporation temperature R-449A/R-448A

 Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 405 CC 45 ºC Q [W] 17150 14090 11460 9210 7300 5700 4380 3280 2380 1630
P[kW] 5,06 4,8 4,46 4,07 3,63 3,17 2,71 2,28 1,9 1,58


Model

Refrigerant evaporation temperature R-134A

 Temperature

condensation



20°C

15°C

 10ºC 5ºC 0ºC -5ºC -10ºC -15ºC -20ºC
H 405 CC 45 ºC Q [W] 19520 16290 13450 10980 8840 7010 5460 4160 3090
P[kW] 3,74 3,56 3,34 3,11 2,85 2,59 2,33 2,08 1,84




Model

Refrigerant evaporation temperature R 404A/R 507

 Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 405 CC 45 ºC Q [W] 17930 14870 12200 9890 7900 6220 4810 3640 2690 1920
P[kW] 5,77 5,42 5,01 4,56 4,09 3,61 3,13 2,68 2,28 1,93









Tech specs:
Producer:
Dorin
Series:
H33
Type:
Semi-hermetic piston compressor
Discharge:
16 mm
Ssuction:
22 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
