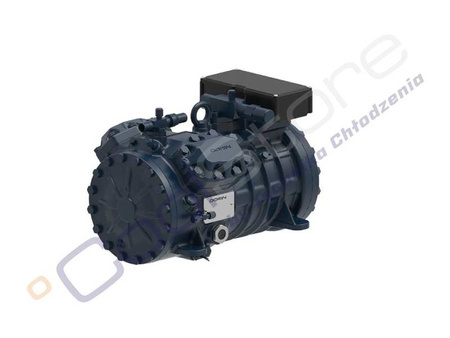

Sprężarka DORIN H 705 CC

  • Sprężarka DORIN H 705 CC
Producer: Dorin
Product code: SPDO_536
2 900,34 €
/ pc.
2 358,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability
COMPRESSOR DORIN H 705 CC

 TECHNICAL DATA

Model

 Refrigerant Tension Operating range

Oil / quantity

 Weight Max. compressor height
H 705 CC

R-449A/R-448A

R-134a

R-404a/R-507

 380V / 50Hz

 Adequately to the factor.

Tables below

POE 32 /1800 ml

 89 kg 336 mm
PERFORMANCE
PERFORMANCE


Model

Refrigerant evaporation temperature R-449A/R-448A

 Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 705 CC 45 ºC Q [W] 24360 20050 16320 13130 10420 8150 6250 4690 3390 2330
P[kW] 6,88 6,57 6,14 5,61 5,01 4,39 3,77 3,17 2,64 2,21


Model

Refrigerant evaporation temperature R-134A

 Temperature

condensation



20°C

15°C

 10ºC 5ºC 0ºC -5ºC -10ºC -15ºC -20ºC
H 705 CC 45 ºC Q [W] 27850 23200 19120 15560 12490 9860 7650 5820 4320
P[kW] 5,3 5,03 4,75 4,44 4,12 3,78 3,43 3,07 2,7




Model

Refrigerant evaporation temperature R 404A/R 507

 Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 705 CC 45 ºC Q [W] 25080 20910 17260 14080 11340 8990 7000 5320 3930 2780
P[kW] 7,89 7,45 6,92 6,33 5,71 5,06 4,41 3,78 3,19 2,65









Tech specs:
Producer:
Dorin
Series:
H33
Typ:
Semi-hermetic piston compressor
Discharge:
16 mm
Ssuction:
28 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
