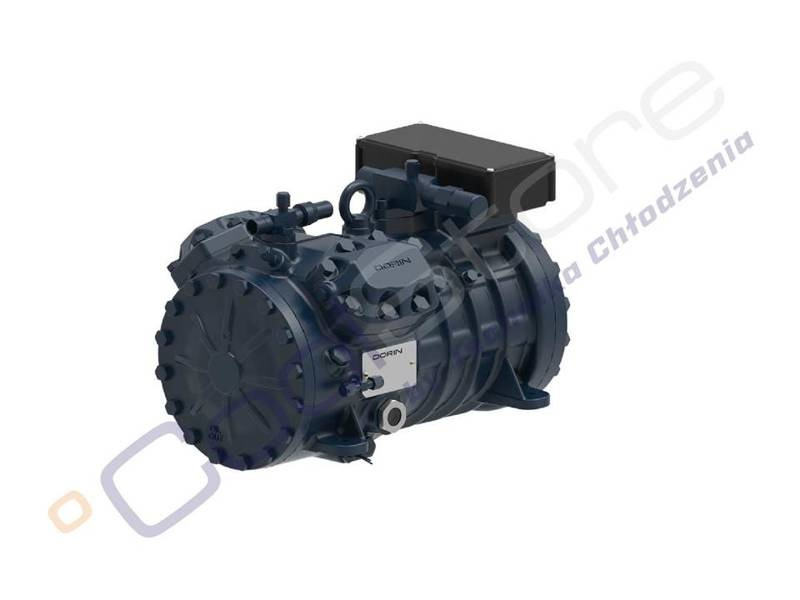

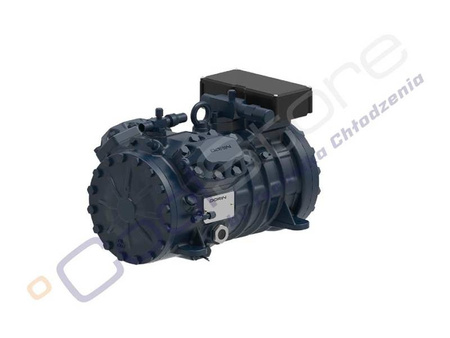

Compressor DORIN H 901 CS

  • Compressor DORIN H 901 CS
Producer: Dorin
Product code: SPDO_549
2 825,06 €
/ pc.
2 296,80 €
net / pc.
Add to wish list
COMPRESSOR DORIN H 901 CS

 TECHNICAL DATA

Model

 Refrigerant Tension Operating range

Oil / quantity

 Weight Max. compressor height
H 901 CS

R-449A/R-448A

R-134a

R-404a/R-507

 380V / 50Hz



 Adequately to the factor.

Tables below

POE 46 /2000 ml

 106 kg 388 mm

PERFORMANCE



Model

Refrigerant evaporation temperature R-449A/R-448A

 Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 901 CS 45 ºC Q [W] - - 28290 22830 18170 14230 10920 8160 5880 4000
P[kW] - - 10,31 9,36 8,37 7,38 6,4 5,48 4,65 3,95


Model

Refrigerant evaporation temperature R-134A

 Temperature

condensation



20°C

15°C

 10ºC 5ºC 0ºC -5ºC -10ºC -15ºC -20ºC
H 901 CS 45 ºC Q [W] - - 32370 26400 21260 16870 13180 10110 7600
P[kW] - - 8,06 7,54 6,99 6,41 5,83 5,25 4,68




Model

Refrigerant evaporation temperature R 404A/R 507

 Temperature

condensation



5°C

0°C

 -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC -40ºC
H 901 CS 45 ºC Q [W] - - 28690 23790 19500 15750 12480 9640 7160 4980
P[kW] - - 11,37 10,47 9,51 8,52 7,52 6,55 5,62 4,76









Tech specs:
Producer:
Dorin
Series:
H35
Type:
Semi-hermetic piston compressor
Discharge:
22 mm
Ssuction:
35 mm
Factory flooded with oil:
Yes
Pictures:
illustrative
