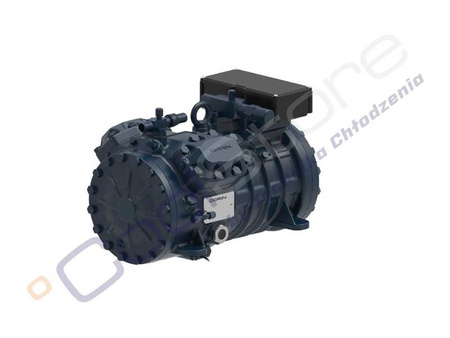

Sprężarka DORIN H 3000 CC

Name: Sprężarka DORIN H 3000 CC
Brand: Dorin
Price: 6471.03 EUR
Availability: InStock

Producer: Dorin

Product code: SPDO_564

Size:

uniwersalny

Our price:

6 471,03 €

/ pc.

5 261,00 €

net / pc.

Quantity:

Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

SPRĘŻARKA DORIN H 3000 CC

TECHNICAL DATA

Model

Refrigerant

Tension

Operating range

Oil / quantity

Weight

Max. compressor height

H 3000 CC

R-449A/R-448A

R-134a

R-404a/R-507

380V / 50Hz

Adequately to the factor.

Tables below

POE 46 /3500 ml

218 kg

466 mm

PERFORMANCE


Model	Refrigerant evaporation temperature R-449A/R-448A
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 3000 CC	45 ºC	Q [W]	77080	63670	51950	41800	33060	25630	19350	14100	9750	6160
H 3000 CC	45 ºC	P[kW]	20,99	20,08	18,87	17,43	15,81	14,07	12,26	10,45	8,69	7,04


Model	Refrigerant evaporation temperature R-134A
Model	Temperature condensation		20°C	15°C	10ºC	5ºC	0ºC	-5ºC	-10ºC	-15ºC	-20ºC
H 3000 CC	45 ºC	Q [W]	114700	96110	79720	65310	52750	41900	32630	24780	18240
H 3000 CC	45 ºC	P[kW]	19,49	19,49	18,96	18	16,71	15,17	13,48	11,72	9,99

Model	Refrigerant evaporation temperature R 404A/R 507
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 3000 CC	45 ºC	Q [W]	76990	64270	53240	43740	35590	28610	22640	17500	13020	9030
H 3000 CC	45 ºC	P[kW]	23,78	22,28	20,52	18,58	16,55	14,51	12,54	10,74	9,17	16,96

Tech specs:

Producer:	Dorin
Series:	H 5
Typ:	Semi-hermetic piston compressor
Discharge:	28 mm
Ssuction:	54 mm
Factory flooded with oil:	Yes
Pictures:	illustrative
