Sprężarka DORIN H 2401 CC

Name: Sprężarka DORIN H 2401 CC
Brand: Dorin
Price: 5490.72 EUR
Availability: InStock

Producer: Dorin

Product code: SPDO_565

Size:

uniwersalny

Our price:

5 490,72 €

/ pc.

4 464,00 €

net / pc.

Quantity:

Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

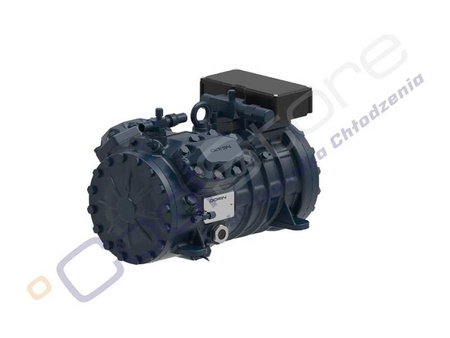

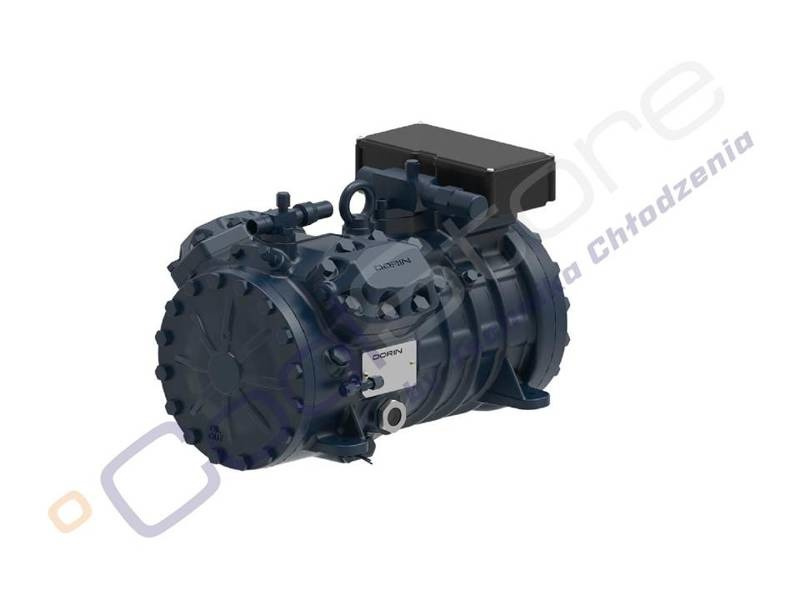

COMPRESSOR DORIN H 2401 CC

TECHNICAL DATA

Model

Refrigerant

Tension

Operating range

Oil / quantity

Weight

Max. compressor height

H 2401 CC

R-449A/R-448A

R-134a

R-404a/R-507

380V / 50Hz

Adequately to the factor.

Tables below

POE 46 /2500 ml

144 kg

466 mm

PERFORMANCE


Model	Refrigerant evaporation temperature R-449A/R-448A
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 2401 CC	45 ºC	Q [W]	65660	54110	44130	35560	28290	22160	17050	12810	9300	6380
H 2401 CC	45 ºC	P[kW]	18,43	17,49	16,23	14,74	13,11	11,44	9,82	8,35	7,13	6,24


Model	Refrigerant evaporation temperature R-134A
Model	Temperature condensation		20°C	15°C	10ºC	5ºC	0ºC	-5ºC	-10ºC	-15ºC	-20ºC
H 2401 CC	45 ºC	Q [W]	71090	59410	49110	40090	32270	25560	19860	15080	11140
H 2401 CC	45 ºC	P[kW]	13,71	13,03	12,23	11,33	10,36	9,35	8,32	7,31	6,33

Model	Refrigerant evaporation temperature R 404A/R 507
Model	Temperature condensation		5°C	0°C	-5ºC	-10ºC	-15ºC	-20ºC	-25ºC	-30ºC	-35ºC	-40ºC
H 2401 CC	45 ºC	Q [W]	66000	55320	45940	37760	30670	24570	19340	17500	11100	7880
H 2401 CC	45 ºC	P[kW]	20,35	19,24	17,92	16,44	14,86	13,22	11,58	9,99	8,51	7,19

Tech specs:

Producer:	Dorin
Series:	H 5
Typ:	Semi-hermetic piston compressor
Discharge:	28 mm
Ssuction:	54 mm
Factory flooded with oil:	Yes
Pictures:	illustrative
