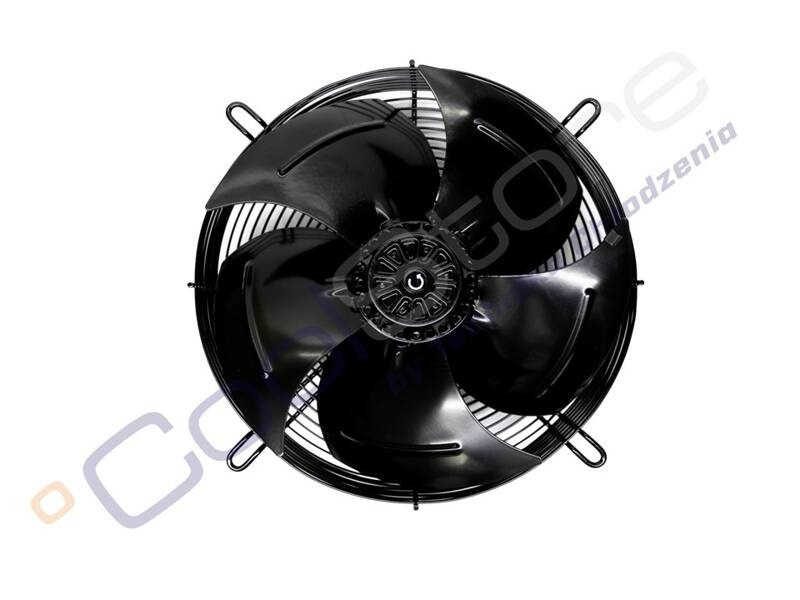

Olvent Pull Fan YWF4E-350S-102/34-G

The fans used in condensers and chillers.

Producer: OLVENT

Product code: Wentylator ssący Olvent 350 mm 230V

Series:Wentylatory - Olvent

Size:

Our price:

79,67 €

/ pc.

64,77 €

net / pc.

Quantity:

Olvent Pull Fan YWF4E-350S-102/34-G

OLVENT axial fans are used in air conditioning, ventilation, refrigeration, heating systems. A wide range of destination due to the large variety of fan: suction or blowing, single or three-phase power supply, diameter from 250 to 900 mm, as well as good qualities: a wide temperature range of application, any method of installation. In addition, to meet the requirements of the ErP Directive 2015 makes it possible to use fans in each application.

Tech specs:

Diameter:	350 mm
Power supply:	230 V / 50 Hz
Flow:	Suction
Rated speed:	1400 min-1
Air volume:	2300 m3/h
Current.:	0,65 A
Input:	129 W
Capacitor:	4 μF/450V
Sound level:	64 dB(A)
Internal thermal protection:	150±5°C
IP Protection:	IP54 IP
Weight: net	6,0 kg
Directive ErP 2015:	✓
Pictures:	illustrative

Technical data Download
