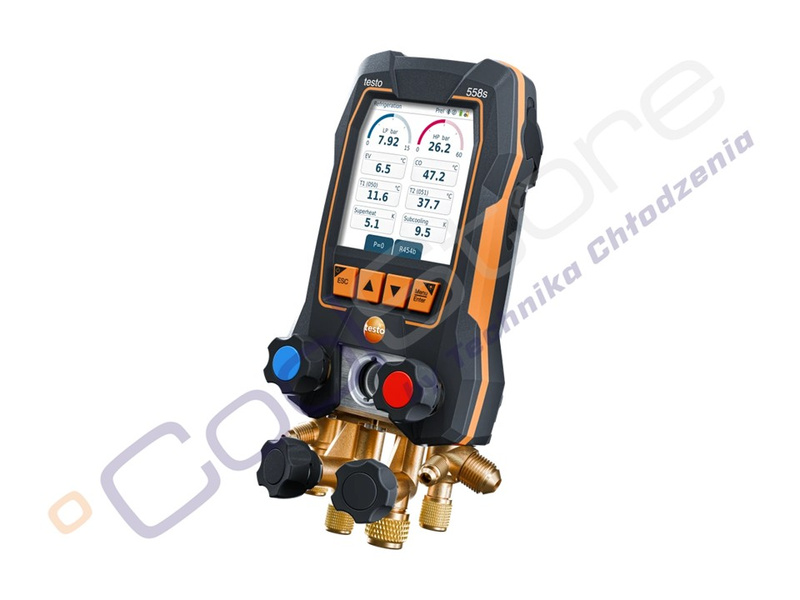

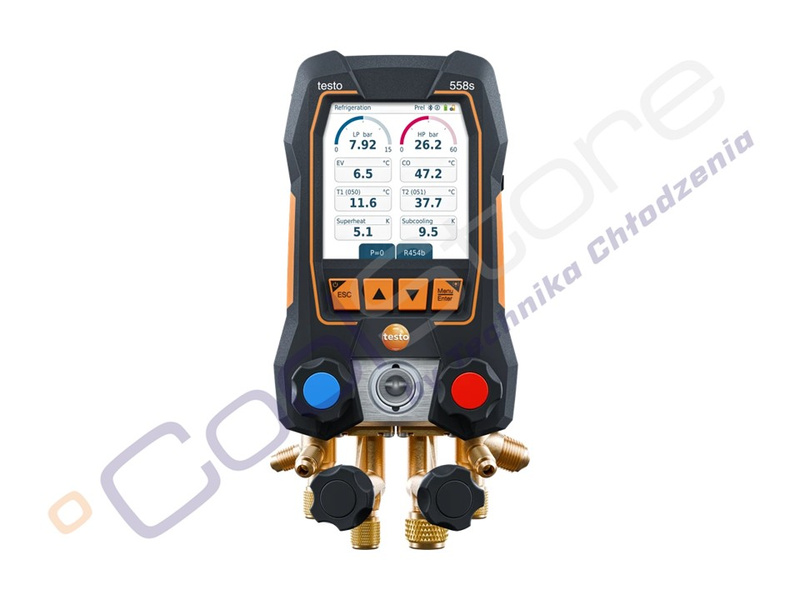

DIGITAL MANIFOLD TESTO 558s SMART VACUUM 0564 5582
The testo 558s offers an intuitive app feel in the manifold, with touchscreen and clear measurement graphs on a large colour display. In addition to the touchscreen, the manifold can also be operated via keys when working with gloves. Thanks to its A3 and A2L compatibility, high robustness with IP54 and hybrid charging system comprising rechargeable and non-rechargeable batteries, the manifold is ideal for every situation.
• Intuitive app feel in your manifold, with touchscreen and clear visualization of readings,
• Everything in one instrument: All measurement applications in one manifold and wireless connection to the entire refrigeration portfolio,
• A3 and A2L compatibility for maximum safety,
• Trend curves of readings over a 30-minute period,
• Full flexibility thanks to unique operability via touchscreen, classic operation via keypad and testo Smart App,
• Always ready for use, with hybrid charging system consisting of non-rechargeable batteries and rechargeable battery (USB-C) and robust thanks to protection class IP54.
Temperatura | |
| Measuring range: | -50 do +150 °C |
| Accuracy: | ±0,5 °C |
| Resolution: | 0,1 °C |
| Probe connection: | 2 x plug_in (NTC) |
Pressure measurement | |
| Measuring range (pressure): | -1 to 60 bar |
| Accuracy (pressure): | ±0.25% of full range |
| Resolution (pressure): | 0,01 bar |
| Probe connection (pressure): | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload (low pressure): | 65 bar |
| Accuracy (High Pressure): | 65 bar |
General Specifications | |
Weight: net | 1,3 kg |
| Dimensions: | 229 x 112,5 x 71 mm |
| Operating Temperature: | -20 do +50 °C |
| Protection class: | IP54 |
| Automatic switch-off of the device: | 10 minutes |
| Battery life: | ≥70 h without illumination; ≥ 50 h with 50% illumination |
| Battery type: | Built-in rechargeable battery: LI batttery 18650; 3x AA; Replaceable battery: 3 alkaline batteries AA |
| Display: | Capacitive touch display |
| Interface: | Bluetooth 5.0 ® |
| Radio Range: | 150 m |
| Storage temperature : | -20 do +60 °C |
| Pictures: | illustrative |
