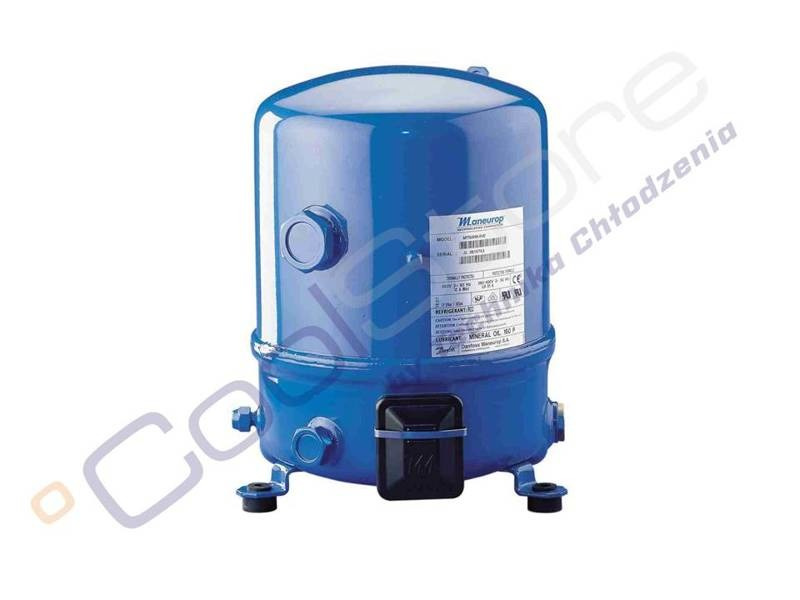

Danfoss Maneurop Compressor MTZ32

  • Hermetic reciprocating compressor.
  • Danfoss Maneurop Compressor MTZ32
Producer: DANFOSS
Product code: MTZ32-4VI
Series:Sprężarki niebieskie Danfoss Maneurop
1 451,40 €
/ pc.
1 180,00 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability
Danfoss Maneurop Compressor  MTZ32

TECHNICAL DATA

Model

Displacement

 Refrigerant Voltage Connection

Lubricant (Charge/Type)

 Weight
MTZ32 53.9 cm3

R404A - R507A -
R134a - R407C

 400V / 50Hz &
460V / 60 Hz		 Rotalock

POE - 160PZ / 1l

 24 kg

Cooling Capacity



Model

Evaporating Temp. / Cooling Capacity R-404A

Condensing Temp.

 -30ºC -25ºC -20ºC -15ºC -10ºC -5ºC 0ºC +5ºC +10ºC
MTZ32 55 ºC - 1046 W 1557 W 2180 W 2935 W 3841 W 4917 W 6185 W 7663 W
45 ºC  1044 W 1582 W 2238 W 3031 W 3983 W 5111 W 6437 W 7980 W 9759 W


Tech specs:
Part number:
MTZ32JF4BVE
,
MTZ32-4VI
,
MTZ32-4VM
Wydajność wolumetryczna:
9,4 m3/h (2900 obr/min)
Displacement:
53,86 cm3
Refrigerant:
R404a / R507A / R134a / R407C / R407A / R407F
Oil Type:
POE 160PZ / 1l
Factory flooded with oil:
Yes
Weight:

net

24 kg
Pictures:
illustrative
