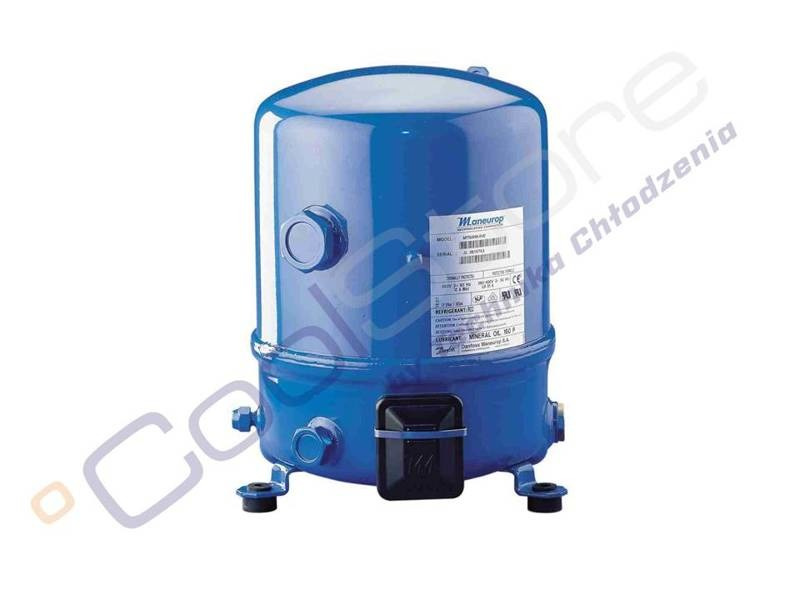

Danfoss Maneurop Compressor MTZ100
TECHNICAL DATA
Model |
Displacement |
Refrigerant | Voltage | Connection |
Lubricant (Charge/Type) |
Weight |
MTZ100 | 171.3 cm3 |
R404A - R507A - |
400V / 50Hz & 460V / 60 Hz |
Rotalock |
POE - 160PZ / 4l |
60 kg |
Cooling Capacity
Model |
Evaporating Temp. / Cooling Capacity R-404A |
|||||||||
Condensing Temp. |
-30ºC | -25ºC | -20ºC | -15ºC | -10ºC | -5ºC | 0ºC | +5ºC | +10ºC | |
MTZ100 | 55 ºC | - | 3238 W | 4916 W | 6883 W | 9200 W | 11931 W | 15140 W | 18891 W | 23246 W |
45 ºC | 3242 W | 4932 W | 6959 W | 9387 W | 12279 W | 15698 W | 19709 W | 24373 W | 29756 W |
Tech specs:
Part number: | MTZ100HS4VE ,
MTZ100-4VI ,
MTZ100-4VM |
Wydajność wolumetryczna: | 29,8 m3/h (2900 obr/min) |
Displacement: | 171,26 cm3 |
Refrigerant: | R404a / R507A / R134a / R407C / R407A / R407F |
Oil Type: | POE 160PZ/ 3,9l |
Factory flooded with oil: | Yes |
Weight:![]() net | 60 kg |
Pictures: | illustrative |
