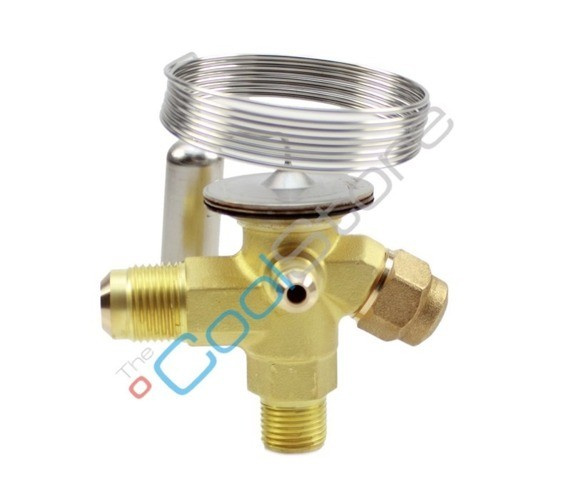

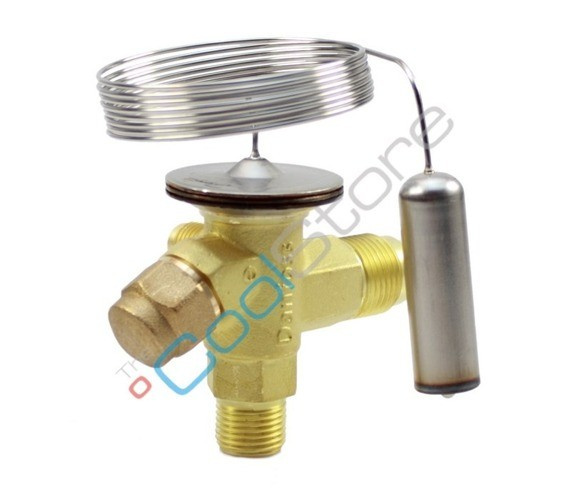

Thermostatic Expansion Valve Danfoss TEX2 068Z3209 R22

  • Thermostatic expansion valve regulates injection of refrigerant into the evaporator. Injection is controlled by overheating.
  • Thermostatic Expansion Valve Danfoss TEX2 068Z3209 R22
  • Thermostatic Expansion Valve Danfoss TEX2 068Z3209 R22
Producer: DANFOSS
Product code: AUDA_0714
Series:Danfoss_38_40
147,60 €
/ pc.
120,00 €
net / pc.
Add to wish list

Thermostatic Expansion Valve  Danfoss TEX2 068Z3209 R22



Thermostatic expansion valves are designed for injection of liquid refrigerant to the evaporator in the refrigeration and air conditioning systems with fluorinated agents.Valves work with a changeable team of nozzles, which facilitates their storageand maintenance.

Characteristic

Value

Type

TEX 2

Capillary tube length [mm]

1.500 mm

Equalization connection type

Flare

Inlet connection type

Flare

Inlet size

3/8”

Max. Working Pressure [bar]

34,0 bar

Outlet connection type

Flare

Outlet/Equalization size [in]

½" | ¼”

Refrigerant(s)

R22, R407C

Static Superheat (SS) [°C]

5,0

Temperature range [°C]

-40 ~ 10 °C



Tech specs:
Pictures:
illustrative
