Thermostatic Expansion Valve Danfoss TN2 068Z3347 R134a

  • Thermostatic expansion valve regulates injection of refrigerant into the evaporator. Injection is controlled by overheating.
  • Thermostatic Expansion Valve Danfoss TN2 068Z3347 R134a
  • Thermostatic Expansion Valve Danfoss TN2 068Z3347 R134a
Producer: DANFOSS
Product code: AUDA_0736
Series:Danfoss_38_40
72,32 €
/ pc.
58,80 €
net / pc.
Add to wish list

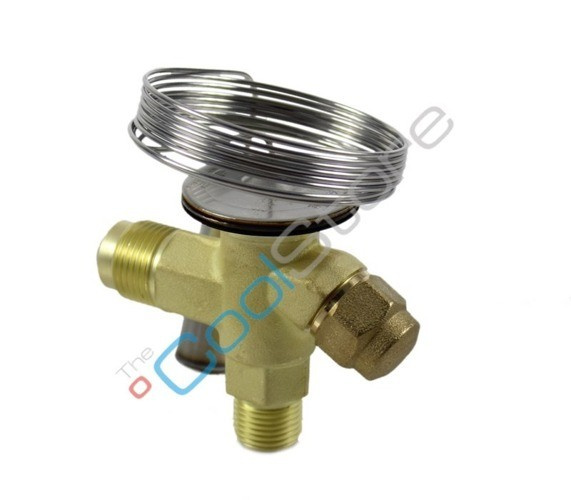

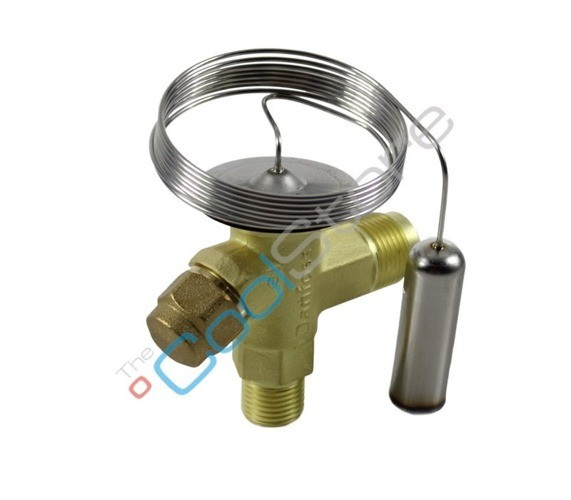

Thermostatic Expansion Valve  Danfoss TN2 068Z3347 R134a



Thermostatic expansion valves are designed for injection of liquid refrigerant to the evaporator in the refrigeration and air conditioning systems with fluorinated agents.Valves work with a changeable team of nozzles, which facilitates their storageand maintenance.

Characteristic

Value

Type

TN 2

Capillary tube length [mm]

1.500 mm

Equalization connection type

-

Inlet connection type

Flare

Inlet size

3/8”

Max. Working Pressure [bar]

34,0 bar

Outlet connection type

Flare

Outlet

½"

Refrigerant(s)

R134a

Static Superheat (SS) [°C]

4,0

Temperature range [°C]

-40 ~ 10 °C



Tech specs:
Pictures:
illustrative
