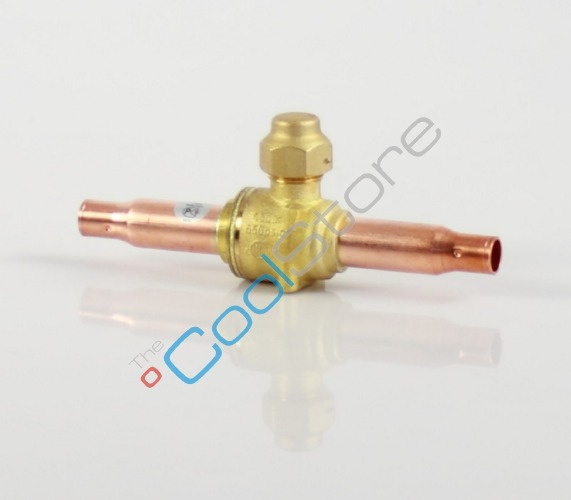

Danfoss GBC ball valve 6s solder 1/4" 009G7020

  • GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.
  • Danfoss GBC ball valve 6s solder 1/4" 009G7020
Producer: DANFOSS
Product code: AUDA_7703
Series:Danfoss_38_40
49,08 €
/ pc.
39,90 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Danfoss GBC ball valve 6s solder 1/4" 009G7020

TECHNICAL DATA

Danfoss ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems. The ball valves give maximum flow in the fully open position. They are designed for operation within a broad temperature

Characteriatic

Value

Type

GBC 6s

Cv-value [USgal/min]

8,63

Direction

Straightway

Inlet connection type

Solder, ODF

Inlet size

1/4"

Kv-value [m³/h]

1,96

Max. test pressure [bar]

65,0 bar

Max. Working Pressure [bar]

45,0 bar

Outlet connection type

Solder, ODF

Outlet size

1/4"

Refrigerant(s)

CFC, HCFC, HFC

Temperature range [°C]

-40 ~150°C




Tech specs:
Pictures:
illustrative
