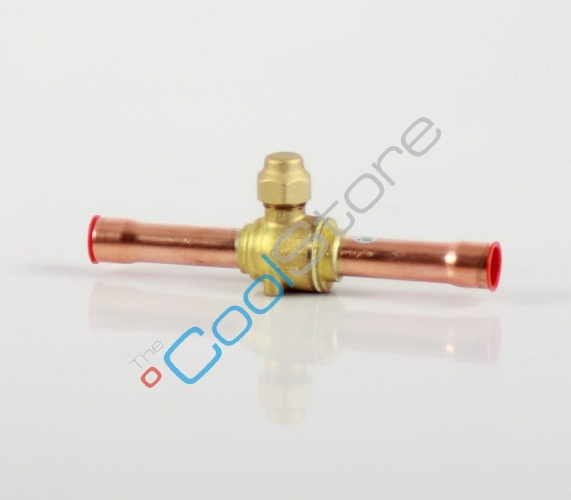

Danfoss GBC ball valve GBC 16s solder 5/8" 009L7023 (009G7023)

  • GBC valves are equipped with a one-piece seal cap and can be wire sealed to prevent unintentional cap removal or tampering in-between services.
  • Danfoss GBC ball valve GBC 16s solder 5/8" 009L7023 (009G7023)
Producer: DANFOSS
Product code: AUDA_7713
Series:Danfoss_38_40
31,88 €
/ pc.
25,92 €
net / pc.
Add to wish list

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.
Check availability

Danfoss GBC ball valve GBC 16s solder 5/8" 009L7023





Danfoss ball valves, type GBC, are manually operated shut-off valves suitable for bi-directional flow. GBC valves are used in liquid, suction and hotgas lines in refrigeration and air-conditioning systems. The ball valves give maximum flow in the fully open position. They are designed for operation within a broad temperature




Tech specs:
Czynnik:
CFC, HCFC, HFC
Kierunek:
Prosty
Maksymalne ciśnienie próbne:
65,0 bar
Maximum operating pressure:
45,0 bar
Rozmiar wylotowy:
16 mm, 5/8"
Type:
GBC 16s
Type of inlet connection:
Do lutowania, ODF
Outlet connection type:
Do lutowania, ODF
Wartość Cv [gal/min]:
62,12
Wartość Kv [m/h]:
14,11
Temperature range:
-40 ~150°C
Pictures:
illustrative
